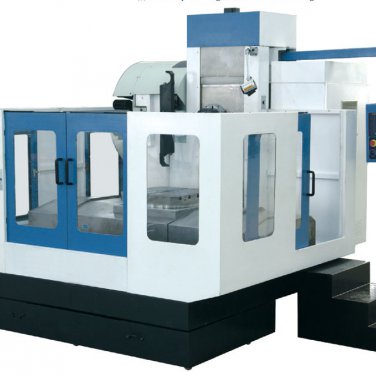

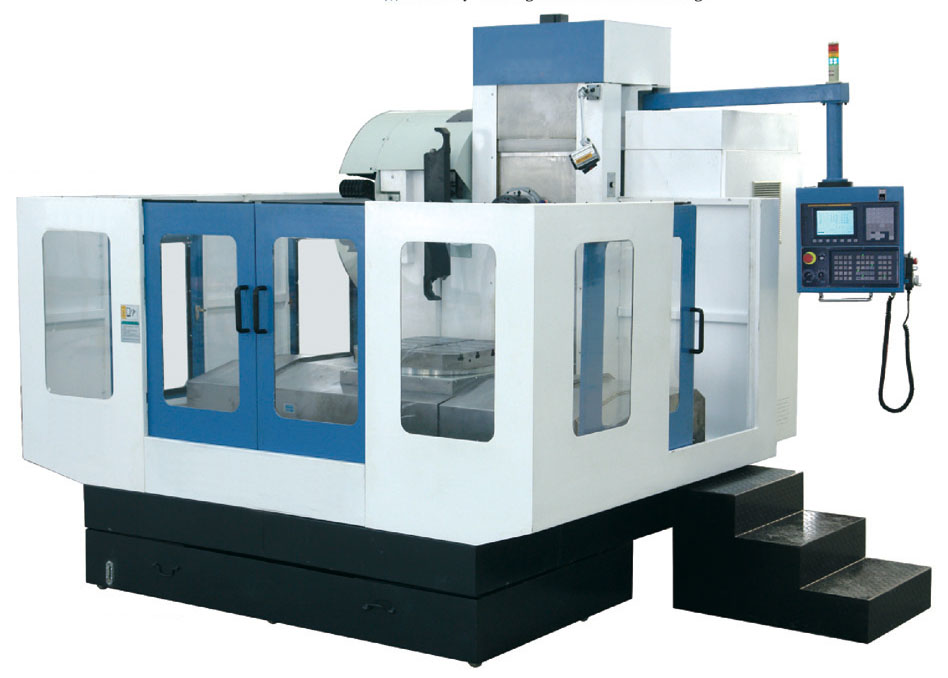

CNC horizontal center ATH6350 Fanuc / Siemens

Robust cast-iron stand for long term accuracy
umbrella type magazine A.T.C. (24 tools)
rotary table with robust guide , mini dividing 1°
slide guide of axes X, Y, Z

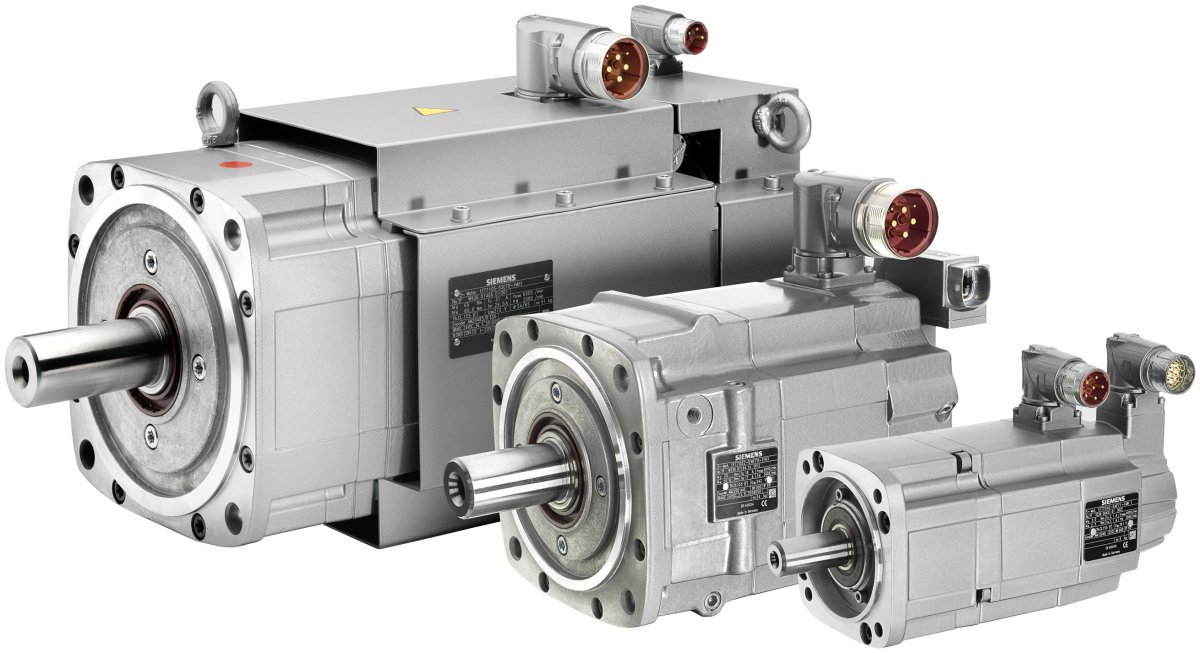

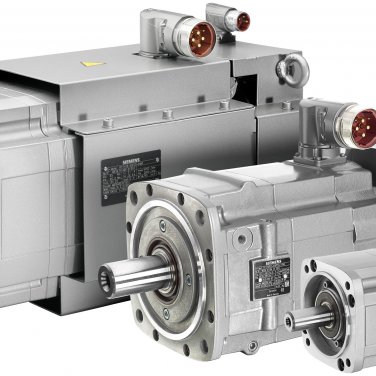

servo drive Fanuc / Siemens

Query

Standard version

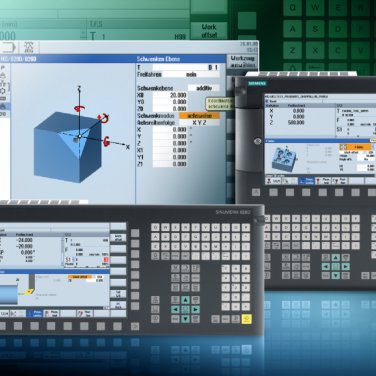

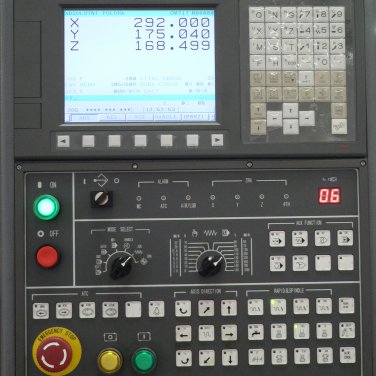

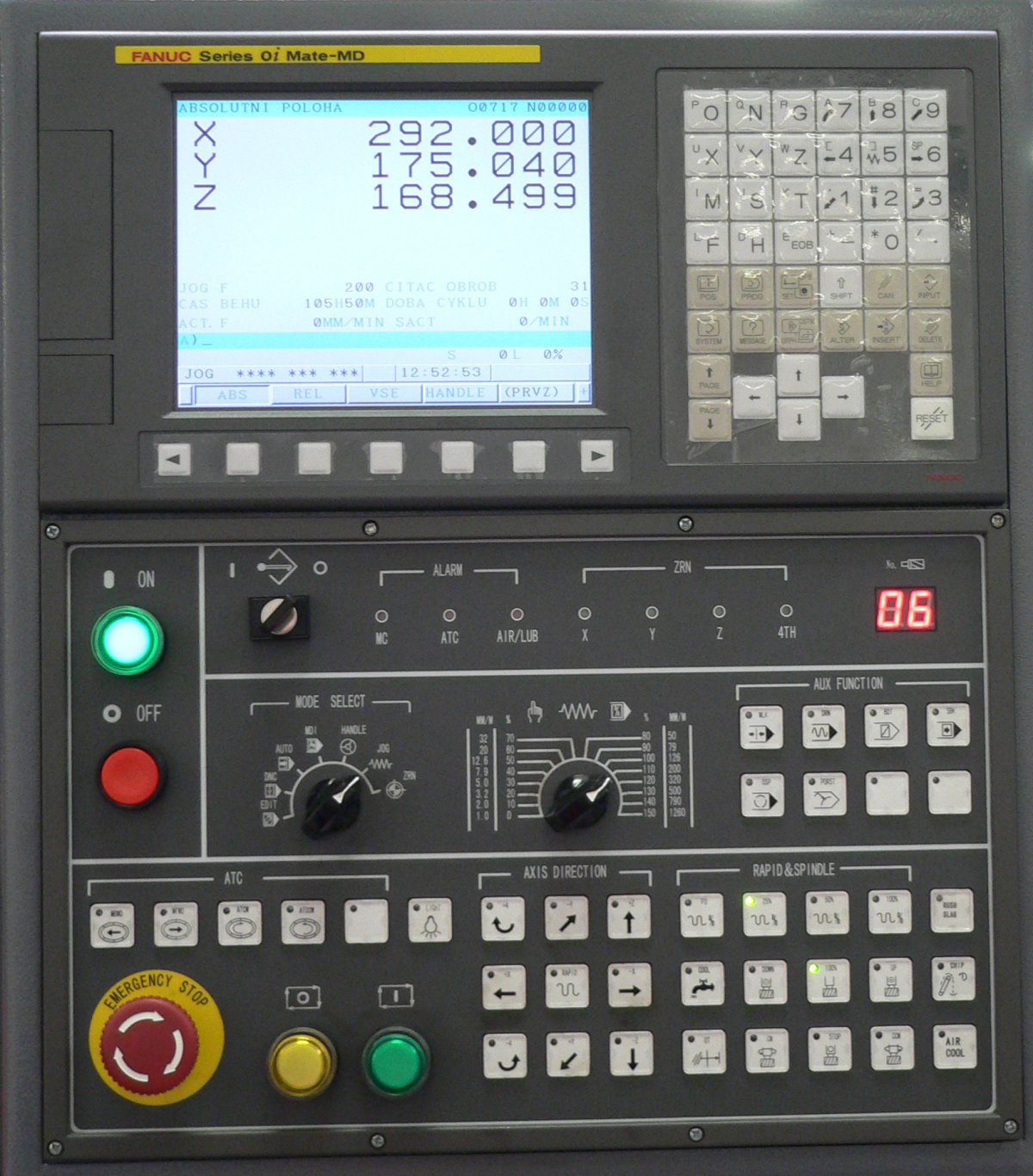

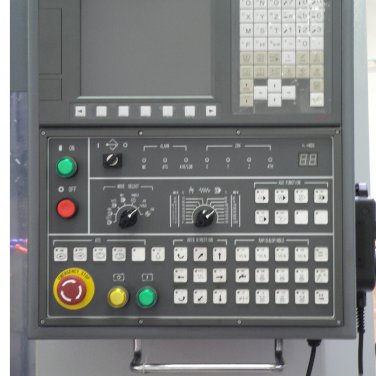

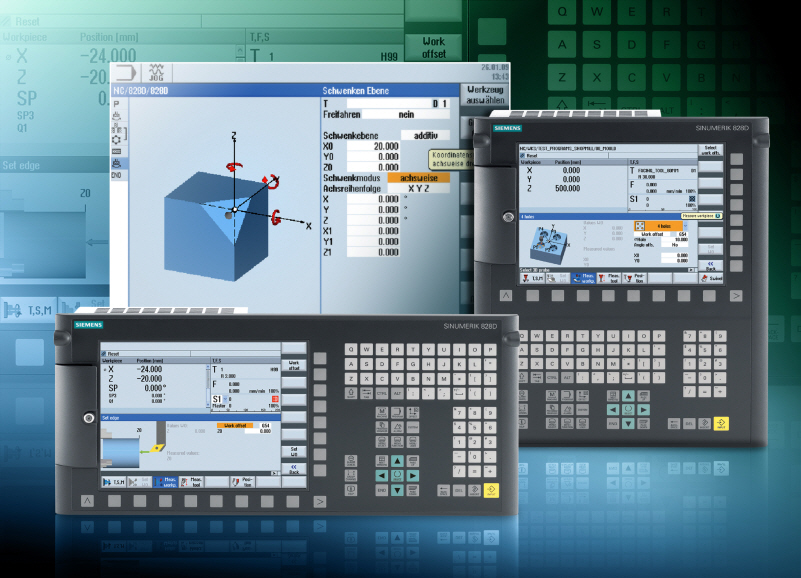

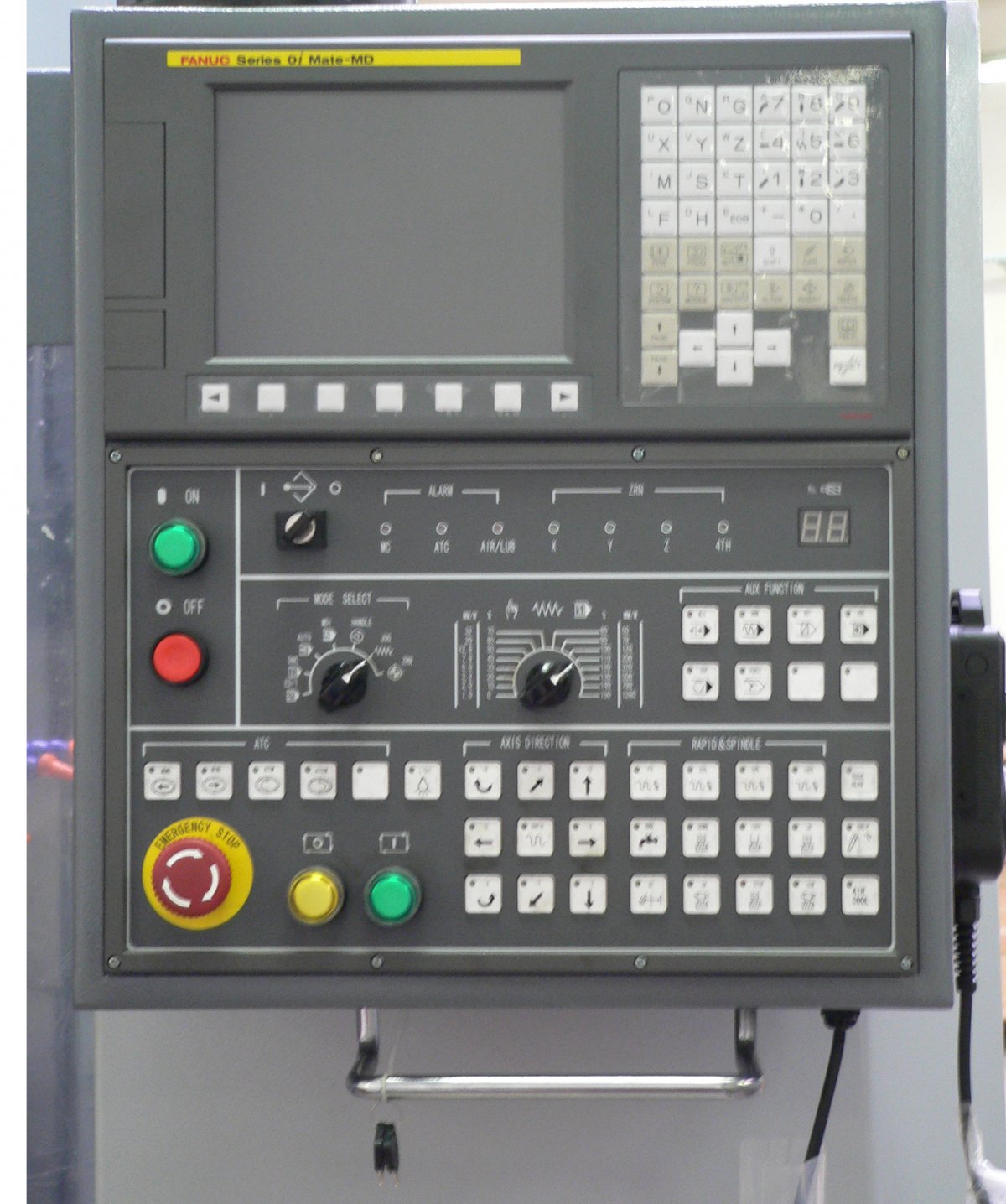

Fanuc 0i MateMD CNC system / Siemens 828D
Umbrella type magazine with 24 tool posts

Options

4th rotary axes
4-5th axes
tool probe(Renishaw)
workpiece probe(Renishaw)
workshop programming Fanuc (Manual Guide) / Siemens (ShopMill)
cooling via spindle hollow
chip conveyer

Technicial datas

Table size	500x500mm
T-slot	5-14x100mm
Min. dividing unit	1°x360
Max. workpiece weight	800kg
Travel of axes X	700mm
Travel of axes Y	650mm
Travel of axes Z	600mm
Spindle nose to table	50-700mm
Spindle nose to center table	170-770mm
Rapid feeding X, Y, Z	20000/20000/15000mm/min
Feeding speed	1-5000 mm/min
Spindle taper	BT50
Spindle speed	6000 rpm
Spindle servo drive	11/15kW
Tool magazine	24 pcs
Max. tool lenght	300mm
Max. tool diameter	127/178mm
Weight	10000 kg
